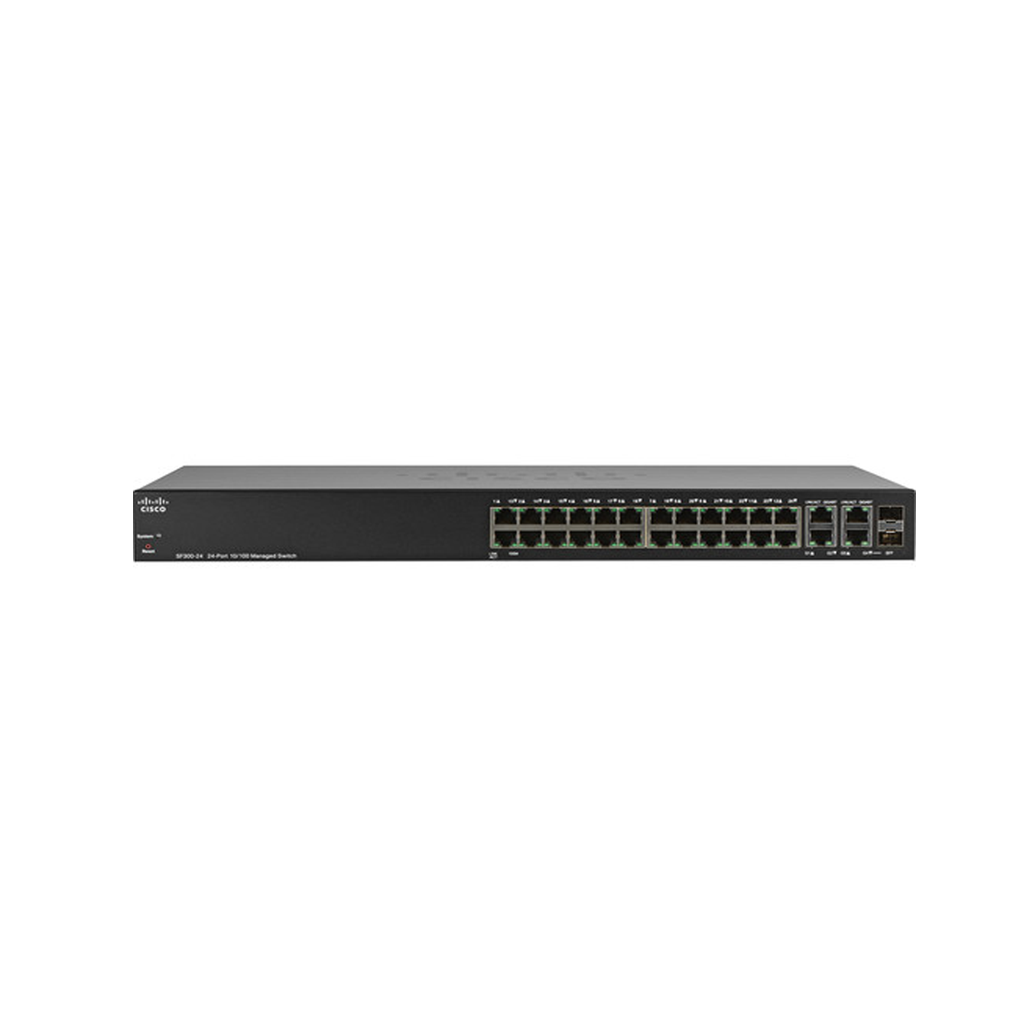

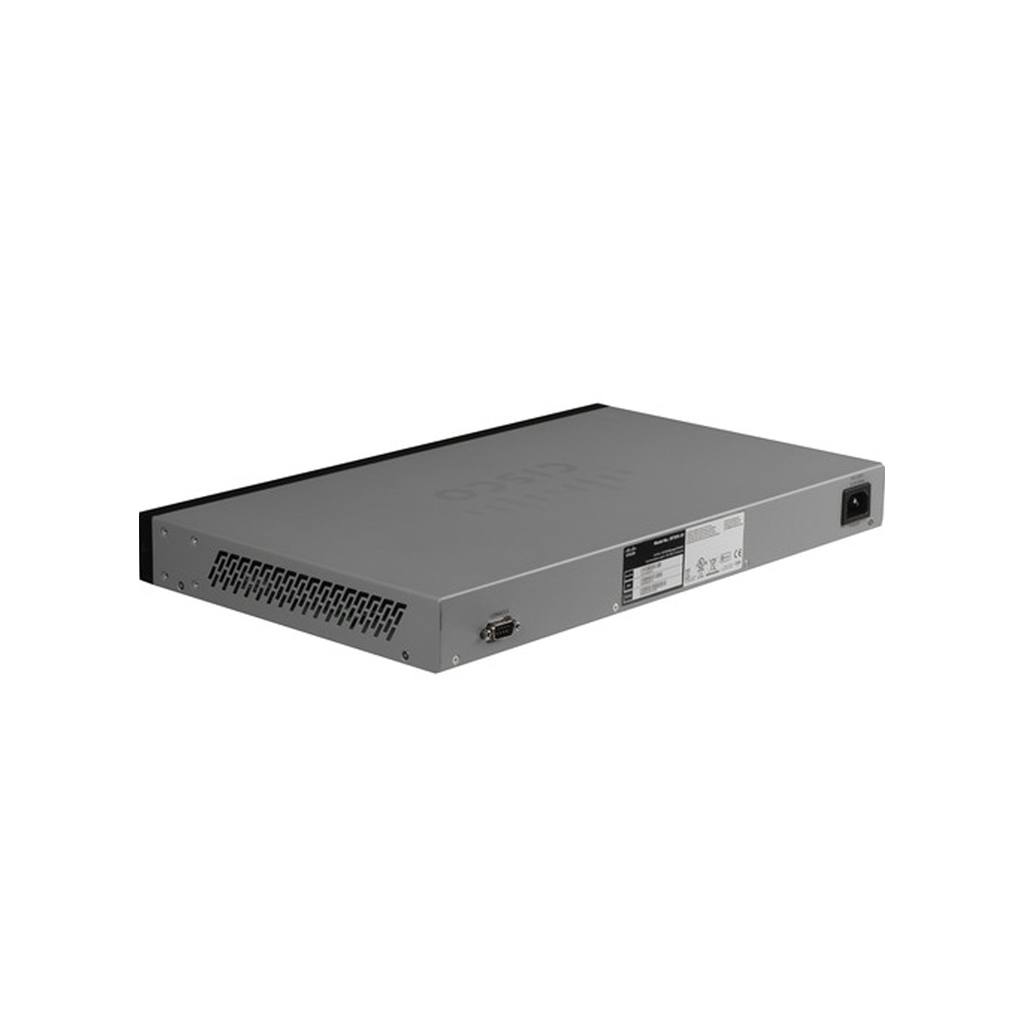

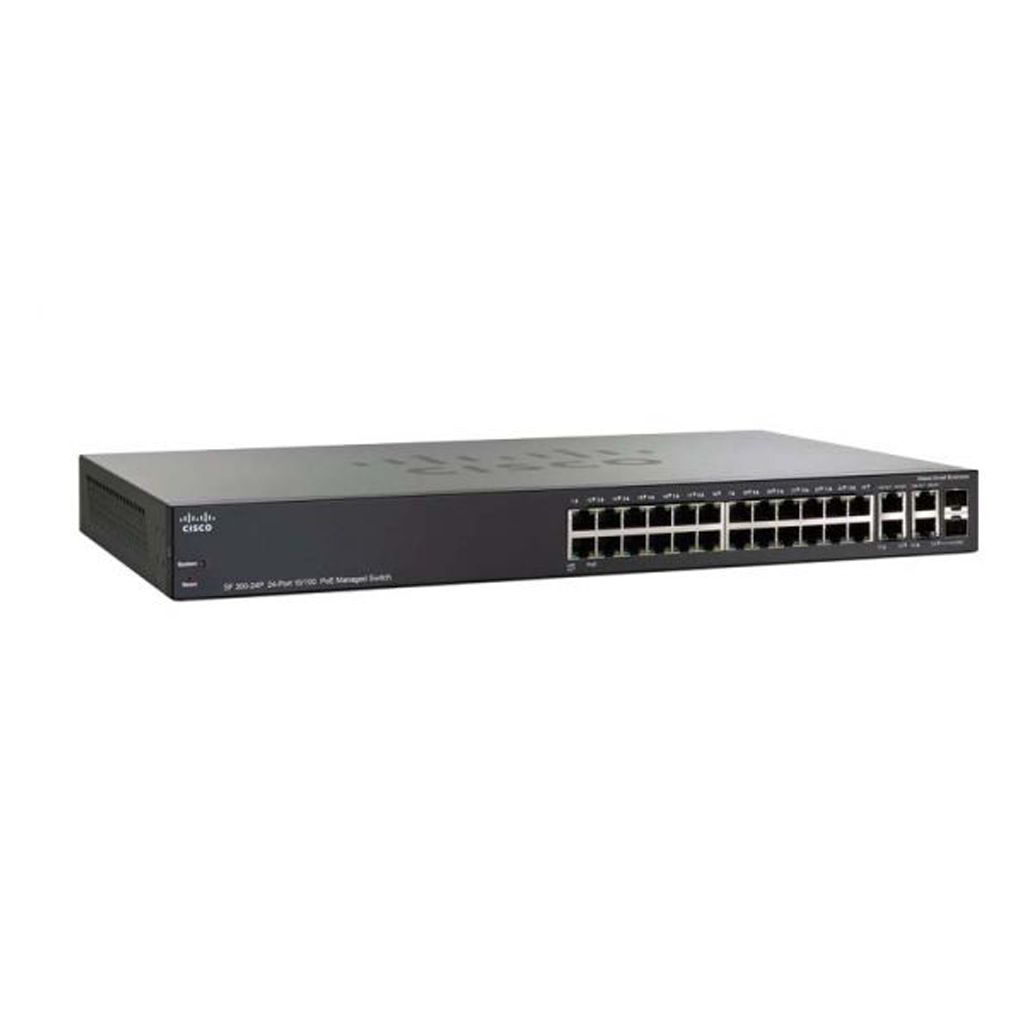

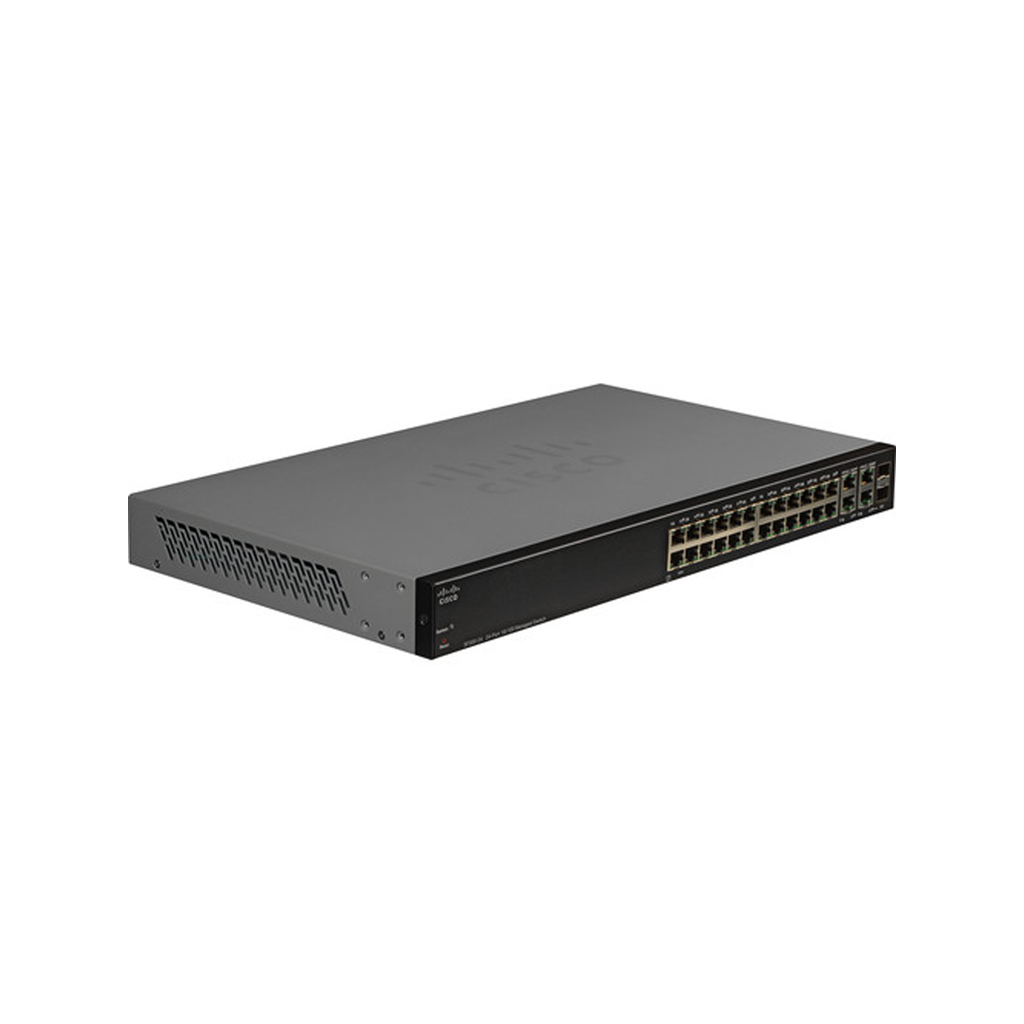

Cisco SF300-24 Switch
Cisco Small Business and Linksysاین سوئیچ به عنوان یک سوئیچ small business شناخته می شود و در کسب و کارهای کوچک استفاده می شود.
توضیحات
سوئیچ سیسکو Cisco SF300-24P دارای 24 پورت 10/100و 2 پورت گیگابایت و 2 پورت combo mini-GBIC می باشد. این سوئیچ به عنوان یک سوئیچ small business شناخته می شود و در کسب و کارهای کوچک استفاده می شود.
| 24 10/100 ports, 2 10/100/1000 ports – 2 combo mini-GBIC ports | Product Description |
| 24 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000 | Ports |
| N/A | Power Over Ethernet (PoE) |
| Switching capacity : 12.8 Gbps ¦ Forwarding performance (64-byte packet size) : 9.52 Mpps | Performance |
| 16K entries | MAC Address Table Size |
| 4K Active VLANs | Capacity |
| Static IPv4 routing | Routing Protocol |
مشخصات سوئیچ Cisco SF300-24
| SF300-24 | Product Number |
| 24 10/100 ports, 2 10/100/1000 ports – 2 combo mini-GBIC ports | Product Description |
| Switch – 24 ports – L3 – managed | Device Type |
| Desktop, rack-mountable – 1U | Enclosure Type |
| 24 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000 | Ports |
| N/A | Power Over Ethernet (PoE) |
| Switching capacity : 12.8 Gbps ¦ Forwarding performance (64-byte packet size) : 9.52 Mpps | Performance |
| 16K entries | MAC Address Table Size |
| 4K Active VLANs | Capacity |
| Static IPv4 routing | Routing Protocol |
| SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI | Remote Management Protocol |
| 10KB | Jumbo Frame Support |
| Secure Shell (SSH), RADIUS, TACACS+ | Authentication Method |
|
Layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, fanless |
Features |
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Compliant Standards |
| 128 MB | RAM |
| 16 MB flash | Flash Memory |
| Link activity, port transmission speed, system | Status Indicators |
| ————————— | Expansion / Connectivity |
| 24 x 10Base-T/100Base-TX – RJ-45 ¦ 1 x console – 9 pin D-Sub (DB-9) – management ¦ 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ 2 x SFP (mini-GBIC) | Interfaces |
| —————————— | Power |
| Power adapter – external | Power Device |
| AC 120/230 V ( 50/60 Hz ) | Voltage Required |
| 17.3 in | Width |
| 10.1 in | Depth |
| 1.5 in | Height |
| 6.8 lbs | Weight |
| 1 x serial cable | Cables Included |
| Included | Rack Mounting Kit |
| 282,775 hour(s) | MTBF |
| UL 60950, FCC Part 15 A, CSA 22.2 | Compliant Standards |
| ———————– | Localization |
| 32 °F | Min Operating Temperature |
| 104 °F | Max Operating Temperature |
| 10 – 90% (non-condensing) | Humidity Range Operating |
| -4 °F | Min Storage Temperature |
| 158 °F | Max Storage Temperature |
| 10 – 90% (non-condensing) | Humidity Range Storage |
